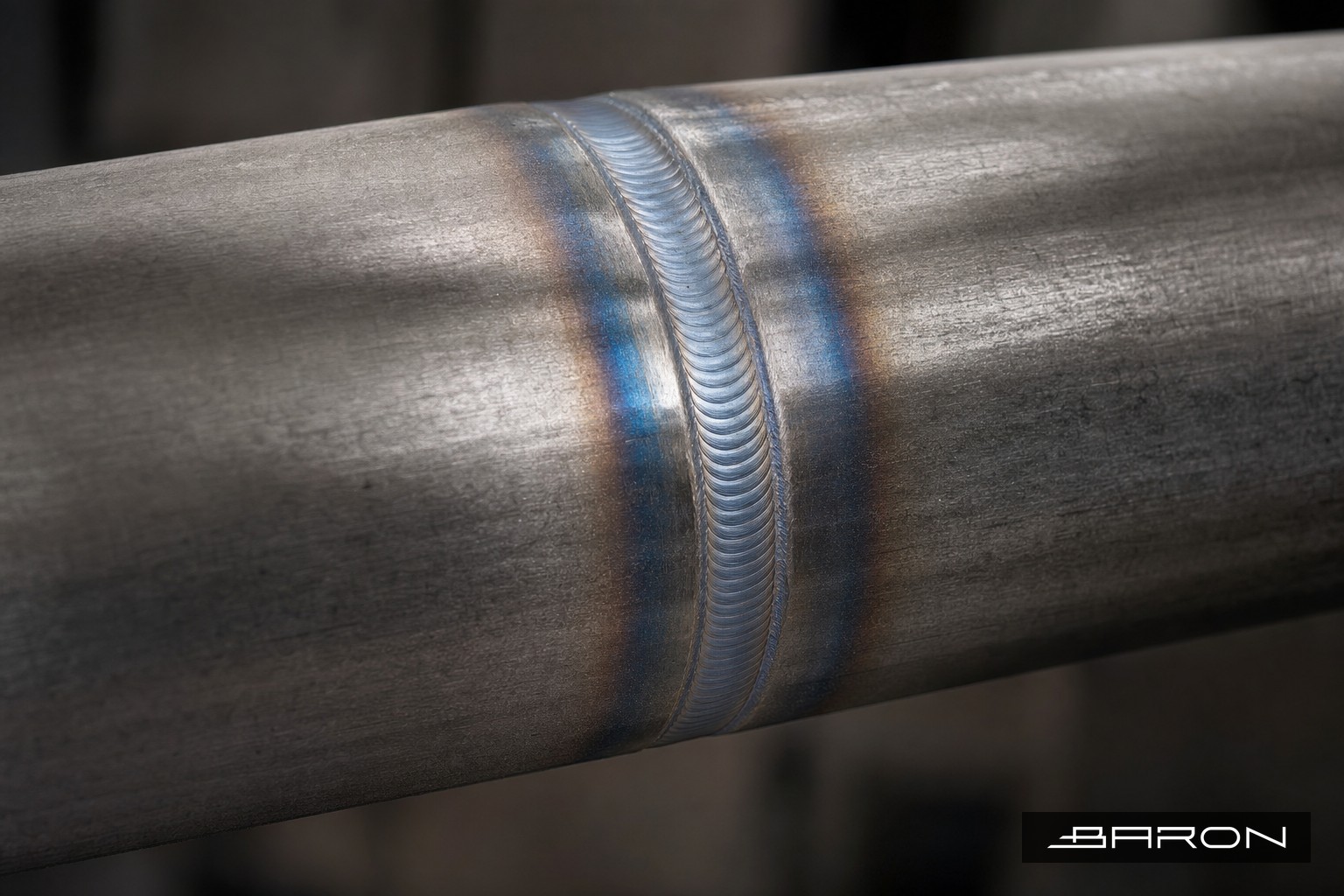

Macro view of a clean carbon steel pipe weld inspected by ultrasonic testing

The Ultimate Guide to Ultrasonic Testing (UT)

Share

The Ultimate Guide to Ultrasonic Testing (UT)

Introduction

Ultrasonic testing is one of the most widely used volumetric inspection methods in nondestructive testing, and for good reason. It finds cracks, voids, and corrosion that you cannot see from the surface, it measures wall thickness without cutting anything open, and it works on a single side of the part. That last point matters more than people realize. When you are inspecting a pressure vessel that is in service, or an aircraft skin you cannot remove, having access to only one side is normal, and UT handles it well.

This guide walks through how ultrasonic testing actually works, the equipment involved, the main variants Baron NDT uses in the field, and the codes that govern the work. If you want the wider view of how UT fits among the other methods, start with our Ultimate Guide to Nondestructive Testing and then come back here for the deep dive.

How ultrasonic testing works

UT uses high frequency sound waves, typically between 0.5 and 25 MHz, well above what a person can hear. A transducer converts an electrical pulse into a mechanical vibration using a piezoelectric crystal. That sound energy travels into the part, and when it hits a boundary, such as the back wall or a flaw, some of it reflects back. The same transducer (or a second one) catches the returning echo and converts it back into an electrical signal. The instrument measures the time of flight and the amplitude of that echo.

Because the speed of sound in a given material is known and stable, time of flight tells you depth. A reflector halfway through a one inch steel plate produces an echo at a predictable point on the screen. Amplitude tells you something about the size and orientation of the reflector. Read together, those two values let a trained technician locate a flaw, estimate its size, and decide whether it fails the acceptance criteria for the job.

Most inspections use a couplant, usually a gel, oil, or water, to bridge the gap between the transducer face and the part. Air is a terrible conductor of ultrasound, so without couplant almost none of the energy crosses into the material. Get the couplant wrong and you get garbage data, which is one of the first things any apprentice learns the hard way.

The main ultrasonic methods

Conventional ultrasonic testing

Conventional UT uses a single element transducer and shows the result as an A-scan, a simple plot of echo amplitude against time. Straight beam (longitudinal) probes look for flaws parallel to the surface, like laminations and corrosion thinning. Angle beam (shear wave) probes send sound in at an angle, which is how you inspect welds for cracks and lack of fusion that sit at odd orientations. Conventional UT is fast, portable, and well understood. For straightforward thickness checks and weld scans it is often the right tool, and it remains the backbone of a lot of field work.

Phased array ultrasonic testing (PAUT)

Phased array uses a probe made of many small elements, often 16, 32, or 64, that the instrument fires in timed sequence. By adjusting the firing delays, the system can steer and focus the beam electronically, sweeping through a range of angles from a single probe position. The result is a cross sectional image of the part rather than a single trace, which makes flaws much easier to interpret and report. PAUT covers more volume per scan, improves detection of awkwardly oriented flaws, and produces a recordable image that an auditor can review later.

We have written about how this plays out on real jobs. See how phased array ultrasonic inspection ensures pipe integrity for the industrial side, and PAUT versus conventional UT for carbon steel butt welds for a direct comparison on weld inspection.

Time of flight diffraction (TOFD)

TOFD takes a different approach. Instead of relying mainly on the amplitude of a reflected echo, it measures the diffracted sound that scatters off the tips of a flaw. A pair of probes, one transmitting and one receiving, straddle the weld. Because TOFD reads tip diffraction, it sizes the through-wall height of a flaw very accurately and is excellent for monitoring crack growth over time. It has blind zones near the surface, so in practice it is often paired with PAUT or conventional UT to cover what TOFD misses. The combination gives both reliable detection and accurate sizing.

Equipment and consumables

Transducers

The transducer is where the inspection lives or dies. Frequency is the main tradeoff: higher frequency gives better resolution and detects smaller flaws, but it does not penetrate thick or attenuating material as well. Lower frequency penetrates further and copes with coarse grained or cast material, at the cost of resolution. Element size, focal length, and damping all change how the probe performs, so part of a good procedure is matching the probe to the material and the flaw you expect.

Couplant

Couplant choice depends on the surface, temperature, and material. Standard gels work for most ambient work. High temperature couplants exist for hot in-service piping. On aircraft aluminum and on parts headed back into service, the couplant has to be compatible with the material and removable without leaving residue or causing corrosion.

Calibration blocks

You cannot trust a reading until the instrument is calibrated against a known reference. Calibration blocks contain machined reflectors, side drilled holes, flat bottom holes, or notches, at known depths and sizes. The technician sets the instrument so those known reflectors read correctly, then inspects the part using that setup. Common references include the IIW block for angle beam calibration and step wedges for thickness. The block material should match the part, since sound velocity changes from one alloy to another. Calibration gets verified at the start of the job, at set intervals, and again at the end, so any drift is caught and the affected work is re-checked.

Flaw types ultrasonic testing finds

UT is a volumetric method, meaning it sees into the body of the material, not just the surface. The defects it picks up well include:

  • Cracks, including fatigue cracks and stress corrosion cracks, especially when an angle beam catches them broadside.
  • Lack of fusion and incomplete penetration in welds.
  • Porosity and slag inclusions, though these can be harder to size than planar flaws.
  • Laminations and delaminations in rolled plate and in bonded structures.
  • Corrosion and erosion thinning, measured as remaining wall thickness.
  • Disbonds and voids in some bonded and composite assemblies.

Flaw orientation matters. UT responds best to reflectors that face the beam. A tight crack lying parallel to the sound path can return a weak signal, which is why technique, scan coverage, and probe angle selection are part of the skill, not an afterthought.

Applications: where ultrasonic testing is used

Aerospace

In aviation work, UT inspects airframe structure, fittings, and forgings for fatigue cracks, and it measures remaining thickness on skins that have been blended out after corrosion or damage. Phased array handles complex structure such as lap splices and buttstrap runouts where a recordable image is part of the deliverable. A clear example is our work on the Boeing 737NG lap splice inspection for AD 2023-13-05, which combines PAUT and high frequency eddy current. UT is also used on engine components, where wave propagation through forged disks and shafts reveals subsurface flaws that surface methods cannot reach.

Oil, gas, and process industry

UT measures wall loss on piping, pressure vessels, and storage tanks, which feeds directly into fitness for service decisions. Weld inspection on new fabrication and in-service piping is a steady part of the workload. Automated and encoded PAUT and TOFD have largely taken over from radiography for many pipeline and vessel welds because they are faster on long runs, carry no radiation exclusion zone, and leave a digital record. For more on the safety angle, see how ultrasonic inspection enhances safety in industrial operations.

Structural and fabrication

Structural steel connections, bridge welds, and heavy fabrication rely on UT to confirm full penetration welds are sound. AWS D1.1 lays out both conventional and phased array acceptance procedures for this work.

Standards and certifications

Ultrasonic work is only as good as the procedure and the person behind it, which is why codes and personnel qualification carry real weight.

  • ASME Boiler and Pressure Vessel Code, Section V defines the NDE methods, including Article 4 for ultrasonic examination of welds and Article 5 for materials and thickness. It is the primary reference for pressure equipment work.
  • ASME Section VIII and the B31.1 and B31.3 piping codes set the acceptance criteria that the Section V examinations are run against.
  • AWS D1.1 Structural Welding Code governs UT of structural steel, with its own annexes for both conventional and phased array methods.
  • API 510, 570, and 653 drive in-service inspection of vessels, piping, and tanks, where UT thickness data supports remaining life calculations.
  • ASTM standards such as E114 (contact pulse-echo), E164 (weld examination), E797 (thickness measurement), E2491 (PAUT system evaluation), and E1001 (TOFD) cover specific techniques.
  • NAS 410 sets personnel qualification and certification requirements for NDT in aerospace, and is the aviation counterpart to the broader SNT-TC-1A recommended practice used widely in industry.

Personnel are qualified at Level I, II, and III. A Level III writes and approves procedures and interprets the codes; a Level II runs inspections and reports results; a Level I performs specific setups and calls under supervision. For aviation, a repair station operating under FAA Part 145 ties all of this to its approved procedures and quality system.

Advantages and limitations

UT earns its place for clear reasons. It is highly sensitive to planar flaws like cracks, which are the dangerous ones. It penetrates thick sections that radiography struggles with. It needs access to only one side. It gives depth and position, not just a yes or no. With PAUT and TOFD it produces a permanent digital record. And it carries no ionizing radiation, so there is no exclusion zone and crews can keep working nearby.

The limitations are just as real. UT demands skill and judgment, far more than a point and shoot method. Rough surfaces, coarse grained castings, and very thin sections are difficult. Flaws oriented unfavorably to the beam can be missed. A couplant is usually required. Reference standards and calibration are mandatory, and reading the signals correctly takes training and experience. UT does not forgive shortcuts, which is exactly why the people running it have to be qualified.

Best practices

  • Write the procedure to the part and the flaw. Match probe frequency, angle, and scan plan to the material, the expected defect, and the governing code before you start.
  • Calibrate on a block that matches the part material and verify calibration at the start, at intervals, and at the end of the job. If it drifted, re-inspect.
  • Prepare the surface. Scale, loose paint, and weld spatter ruin coupling and hide signals.
  • Use encoded PAUT or TOFD when a recordable, reviewable image is part of the deliverable or required by the code.
  • Document everything: instrument, probe, couplant, calibration, scan coverage, and findings. A clean record is what survives an audit.
  • Keep technicians current. Certification has expiry dates and vision requirements for a reason.

Frequently asked questions

What is the difference between conventional UT and phased array?

Conventional UT uses a single element probe and shows a single A-scan trace. Phased array uses many elements fired in sequence to steer and focus the beam, producing a cross sectional image and covering more volume from one position. Phased array is generally better for complex geometry and for jobs that need a recordable image.

Can ultrasonic testing measure how thick something is?

Yes. Thickness gauging is one of the most common uses of UT. The instrument measures the time for sound to travel to the back wall and back, and converts that to thickness using the known velocity in the material. It is the standard way to track corrosion and erosion on piping, tanks, and aircraft skins.

Does ultrasonic testing use radiation?

No. UT uses sound waves, not ionizing radiation, so there is no radiation safety zone and no need to clear an area. That is one reason it has replaced radiography for many weld inspections.

What surfaces can be inspected with UT?

Most metals and many composites can be inspected, provided a couplant can be applied and the surface is reasonably clean. Very rough surfaces, coarse grained castings, and extremely thin sections are the hard cases and may call for a different method or a tailored technique.

How accurate is flaw sizing with ultrasonic testing?

It depends on the method. Amplitude based sizing has known limits. TOFD measures through-wall height from tip diffraction and is very accurate, which is why it is favored for monitoring crack growth. Combining PAUT for detection with TOFD for sizing gives strong results on critical welds.

Conclusion

Ultrasonic testing covers a lot of ground, from a quick thickness check on a corroded line to a fully encoded phased array scan of an aircraft lap splice. The method is powerful, but the results are only as good as the procedure, the calibration, and the certified technician reading the screen. That is where it pays to work with people who do this every day.
